Specifications:

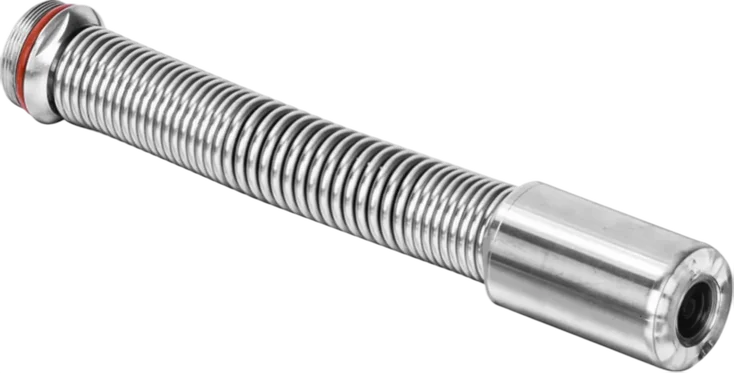

Camera Head
Camera Size: Φ23mm×45mm
Camera Total Length: 120mm（short spring camera head）/250mm（long spring camera head）
Sensor: 1/3" Sony, 480 TV-Line
Pixel: 752H * 582V
View Angle: 120°
Focus Distance: 20cm (approx)
Depth-of-Field: 100cm (approx)
Front Lens: Sapphire glass
Water-Proof: 20m Under Water (Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12× LED (White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉

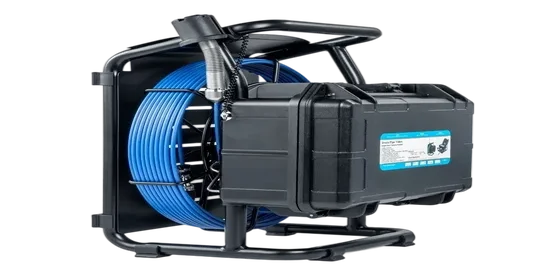

Cable Wheel
20/30/40M fiberglass rod cable with on-screen distance counter
Diameter of push cable: 5.2mm
Material of cable: Fiberglass covered by PP
Operation: Mounted and rotatable in the case

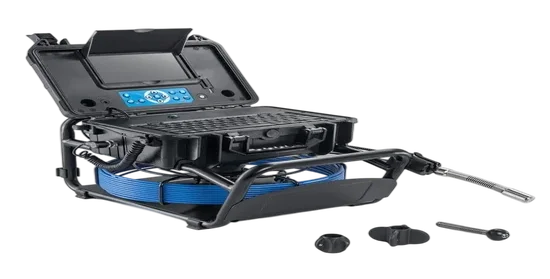

LCD Monitor
Screen: 7-inch 16:9 Super bright HD color LCD screen
Resolution: 800x480 RGB
Mirror and Flip: support image mirror, and flip
Video Resolution: 720*576 25fps Max.
Video Encoding: H.264
Photograph: 720*480/720*576
Audio Recording: local sound record
Output: TV and Audio output On-screen date and time
External memory: support SD memory card up to 32GB
Data output: USB 2.0 to PC
Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses

Battery Pack
Power Input: DC 9V-12V
Battery Capacity: 7.4V 5200mAh Li-on Battery
Power Output: 6-12V DC, USB 5V Work/Charge time: 6/8 hours

Optional Features
- Camera head with built-in 512hz sonde

- Self-leveling feature (same size)

- Long spring camera head for better flexibility while passing through 90 degree bends

- 38mm camera head for using in larger pipes

Packing Details
- Each unit in a professional tool case
- 1 unit in one carton
- Carton G.W.: 16-17. 1kg (slight different for 20m, 30m and 40m unit)
- Carton Measurement: 550 * 440 * 350mm
