G9000 Portable UV-Light Curing Repair Equipment

Built-In Alarm System

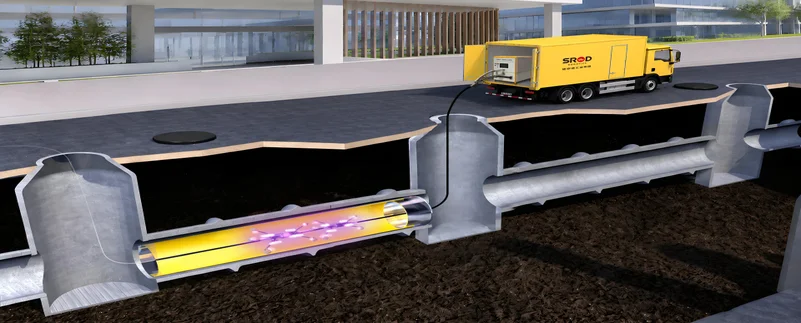

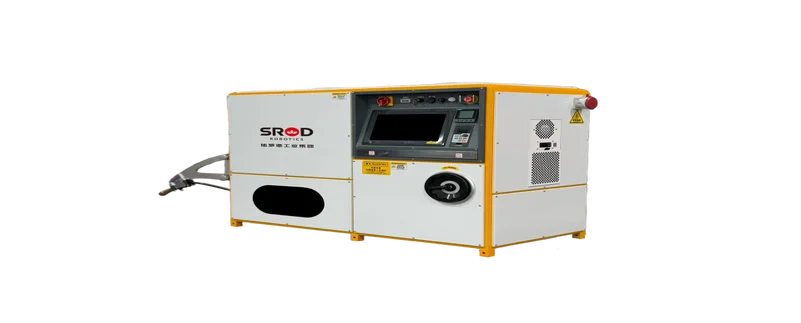

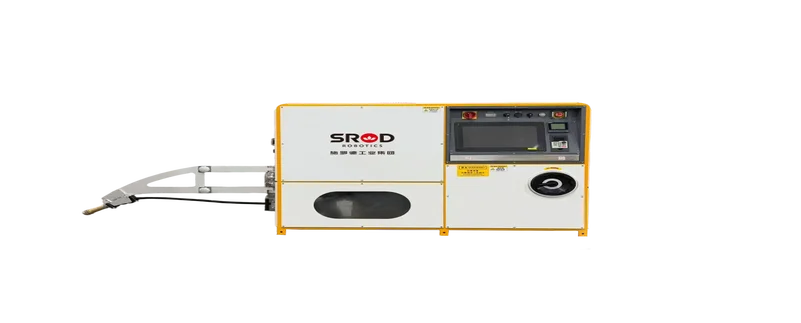

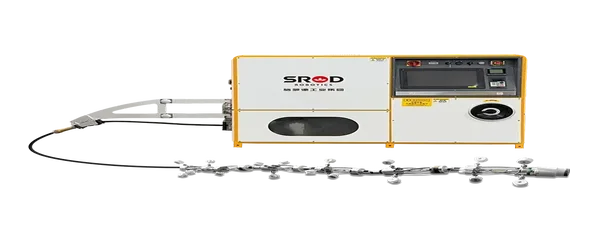

The G9000 Small Portable UV-Light Curing Repair Equipment designed for municipal pipelines, covering a wider range of pipe diameters, and can be used for pipe repair from DN150 to 1600mm. The equipment is equipped with a 15.6-inch industrial-grade touchscreen PC and a domestically produced control system, which allows for free switching of UV lamp power via software, making it better suited for different materials and pipe diameters. It can also automatically record construction information and all parameter data during the curing process and generate a PDF report.

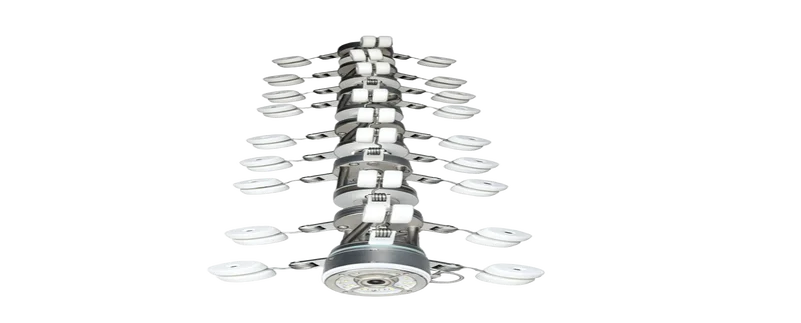

6 × 1,500w

UVA Lamp Driver Unit

150 m

Longest repair

450 kg

Equipment Weight

150 - 1,600 mm

Pipe Diameter
