T200 Pipeline Clearing Robot

Heavy-Duty Pneumatic UV-CIPP Lateral Reinstatement Cutter

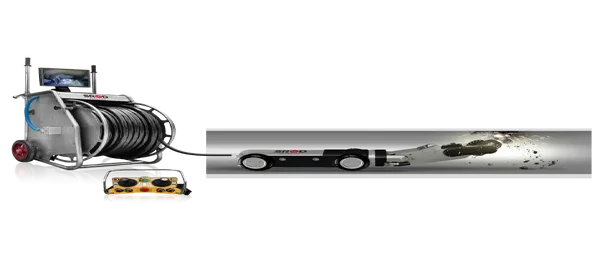

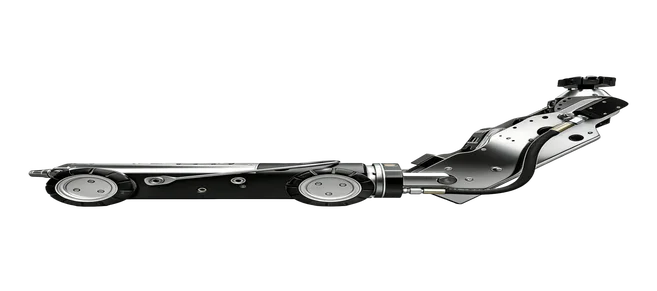

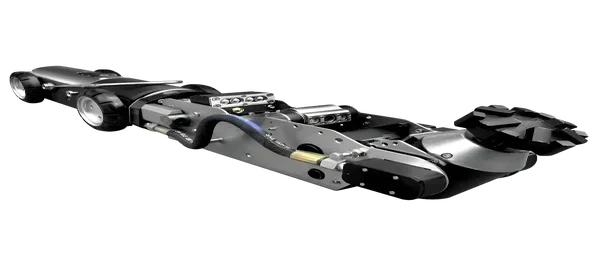

The T200 Pipeline Clearing Robot, equipped with a high-torque pneumatic cutting motor, a high-definition colour imaging unit, and interchangeable cutting/grinding heads, is an intelligent pipeline rehabilitation system precisely engineered for pipe diameters ranging from DN200mm to 800mm. Powered by an ultra-heavy-duty pneumatic motor, the system delivers the robust performance required to rapidly clear severe internal obstructions, including protruding tree roots, rebar intrusions, heavy mineral encrustations, concrete grouting blocks, blind lateral connections, and solid blockages. Additionally, the T200 serves as an essential tool for lateral reinstatement (re-opening lateral connections) following UV-Cured-In-Place-Pipe (CIPP) lining rehabilitation.
