FIFISH W6 NAVI
Advanced Underwater Navigation
Maritime ROV

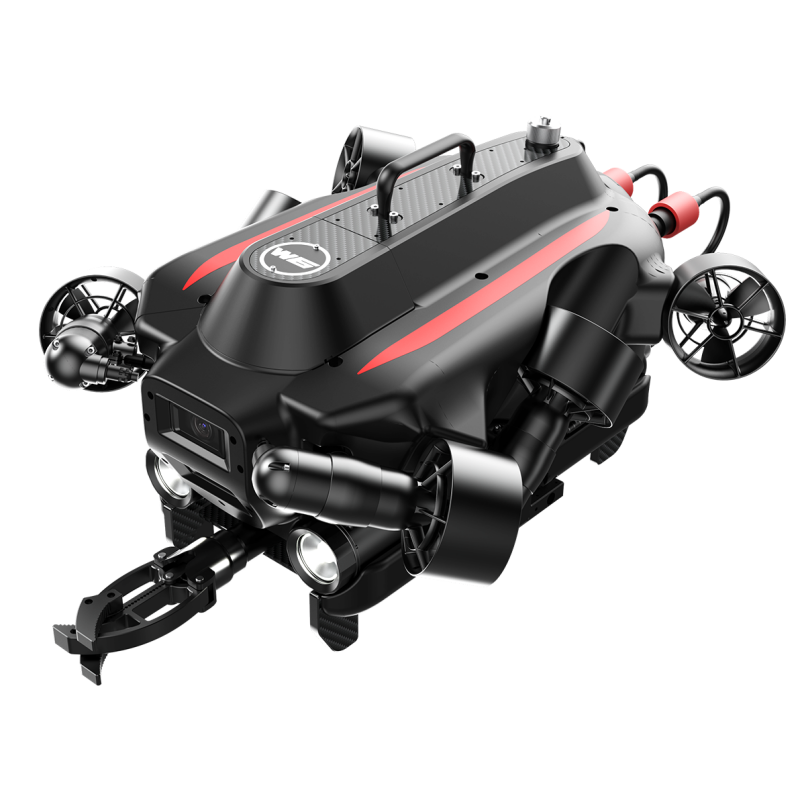

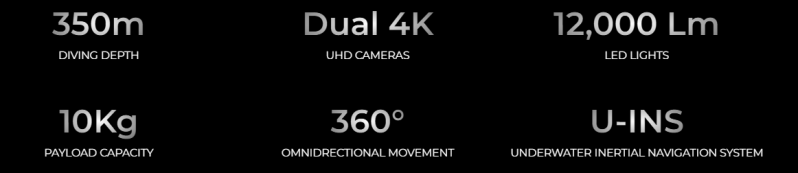

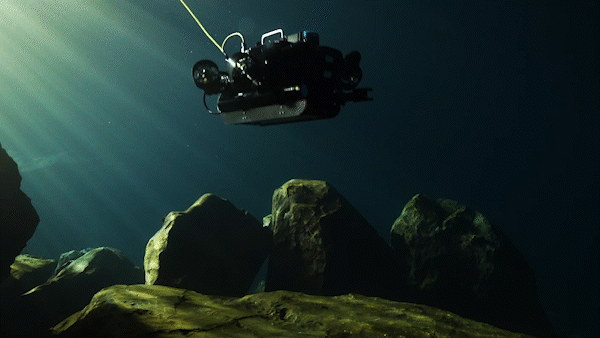

FIFISH W6 NAVI is a maritime ROV designed for search and rescue operations, capable of reaching depths of up to 350 meters. It features powerful propulsion and exceptional stability, even in strong currents. The ROV's modular design and multiple port interfaces enable quick component replacement and accessory switching, ensuring efficient, precise, and reliable performance in open-sea missions.
Inertial Underwater Navigation System
Achieve Automatic Navigation & Surveying

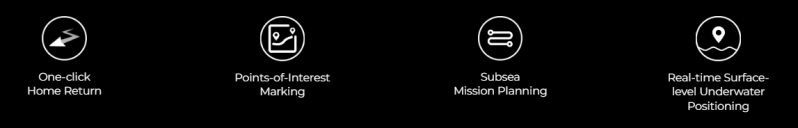

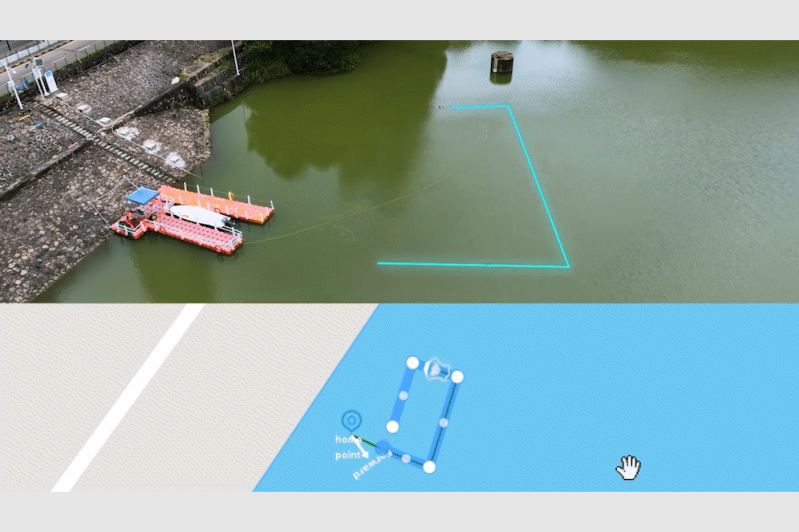

W6 NAVI's Underwater Inertial Navigation System (U-INS) uses deep learning and sensor fusion for accurate navigation (position, velocity, heading, and attitude). It offers mission planning, one-click return, and real-time motion tracking, allowing operators to efficiently self-navigate and integrate custom maps with recorded points of interest.

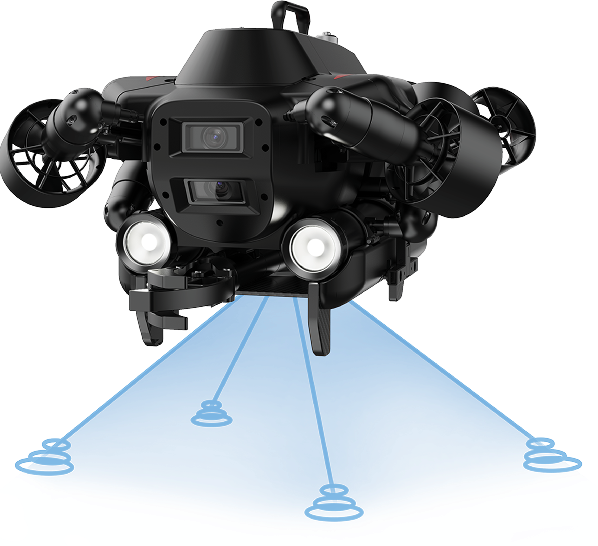

Q-DVL | Station Lock Hovering
Enhanced Mission Stability & Control

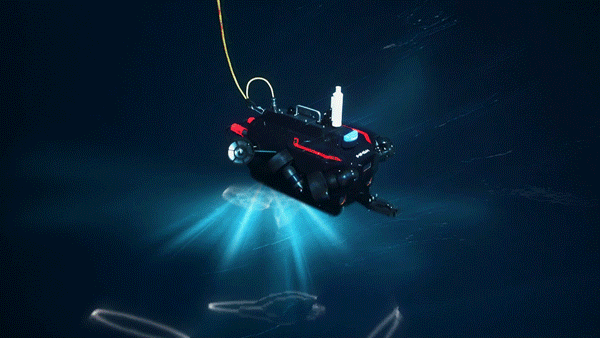

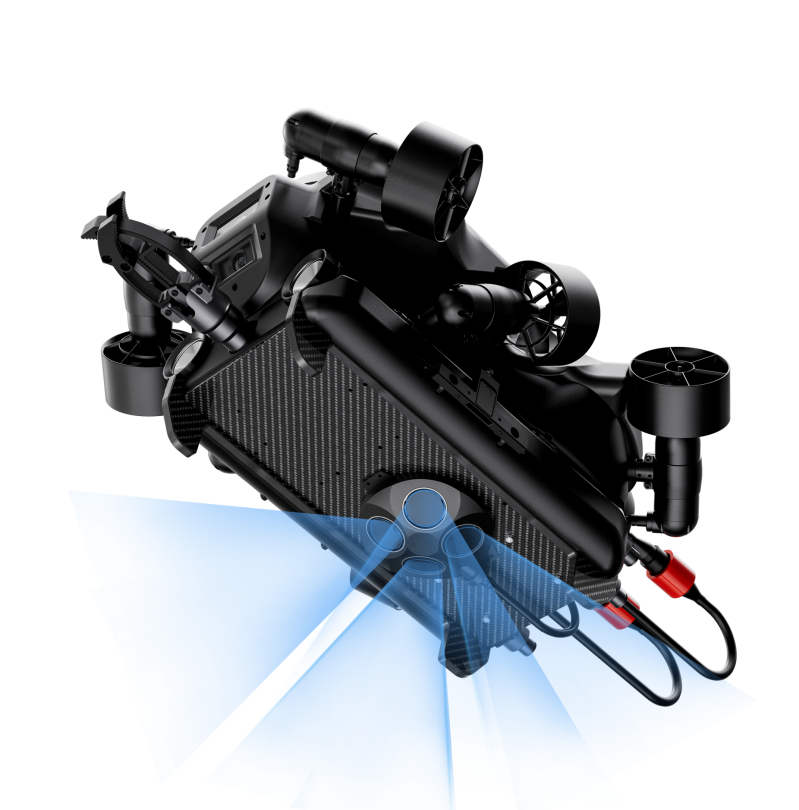

FIFISH W6 NAVI’s built-in Q-DVL is an adaptive and intuitive system, locking the ROV position underwater and precisely returning to its locked position against interferences and challenges from the underwater work environments. Execute and deliver inspections with exceptional stability, smoothness, and precision.
Station Lock
Downward
Collision Avoidance
Altitude Tracking

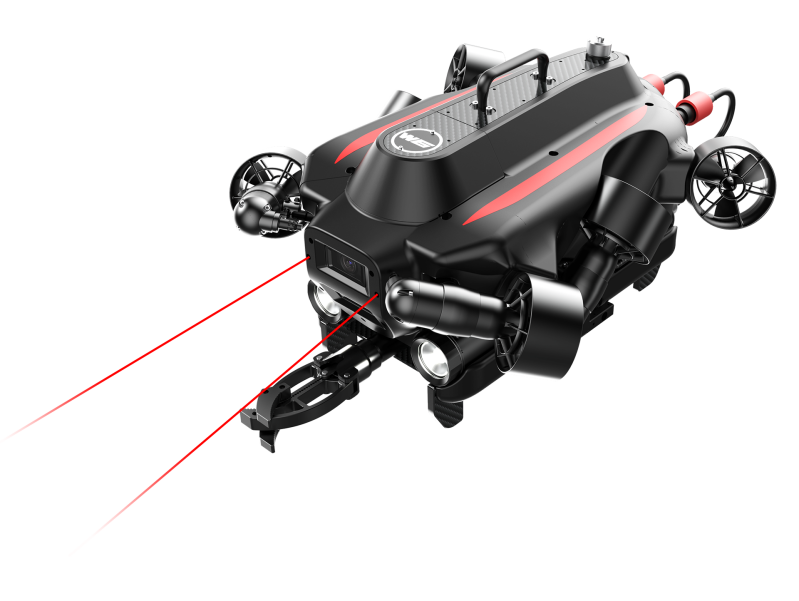

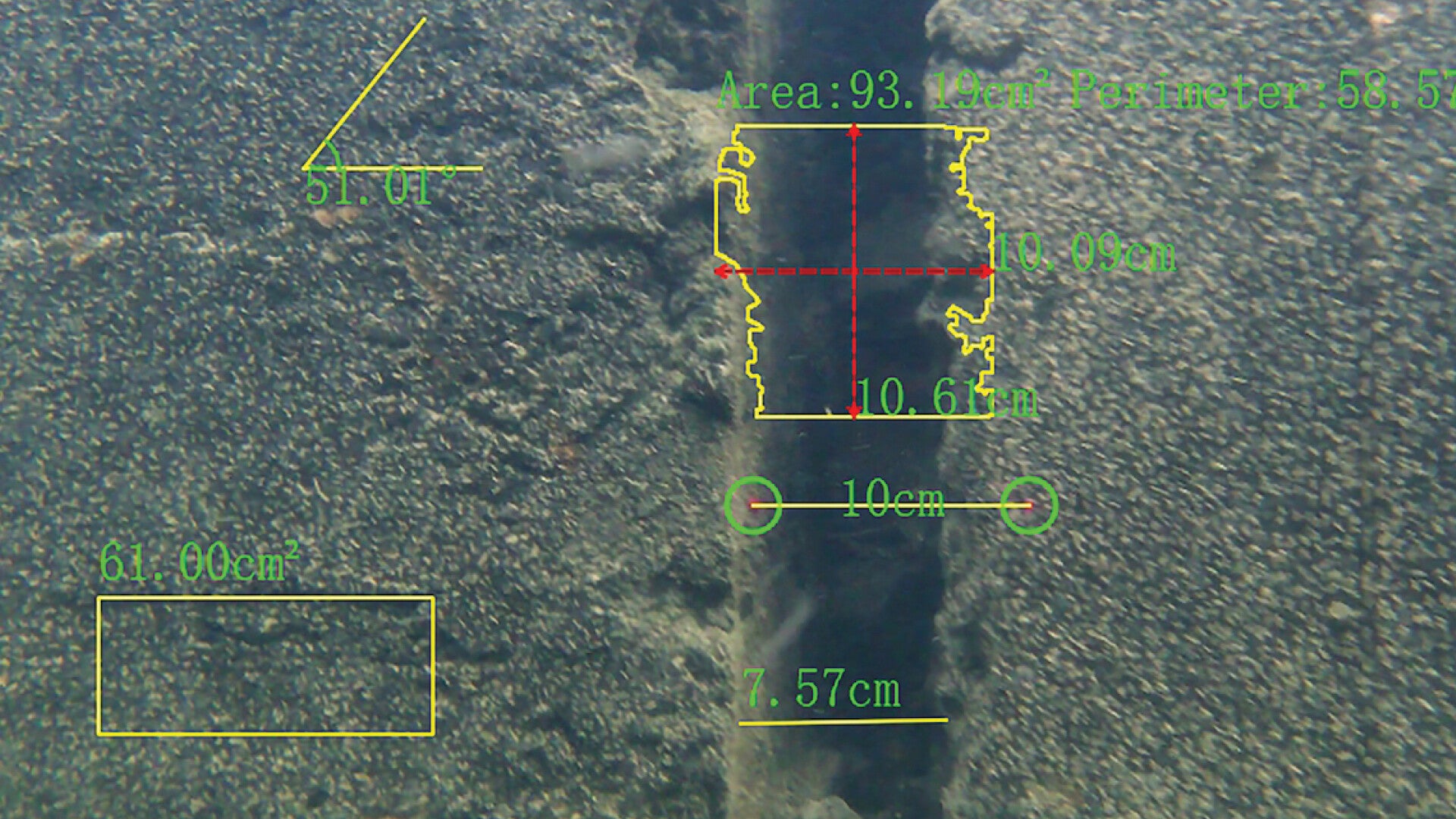

QY-MT | QYSEA Measurement Tool
Intuitive Online & Offline Measurements

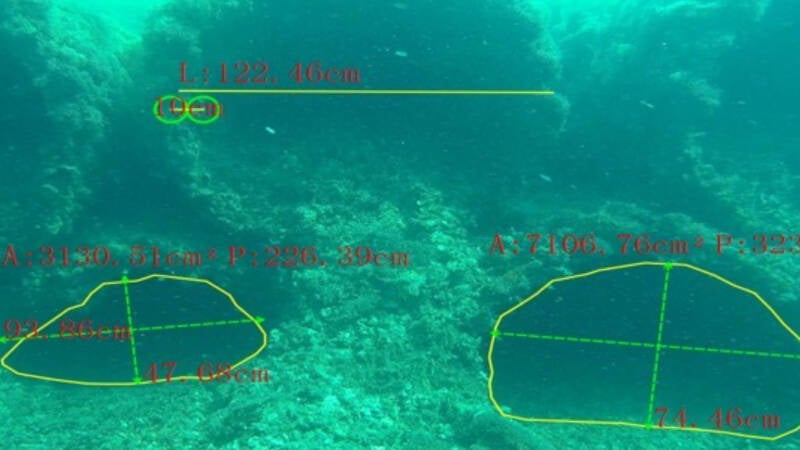

W6 NAVI's built-in laser scaler, paired with QYSEA's measurement software, enables precise measurements essential for search and rescue operations. It measures length, width, area, perimeter, and angles with millimeter accuracy, allowing professionals to identify structural defects, log data, and conduct evaluations that enhance rescue efforts and ensure safety.

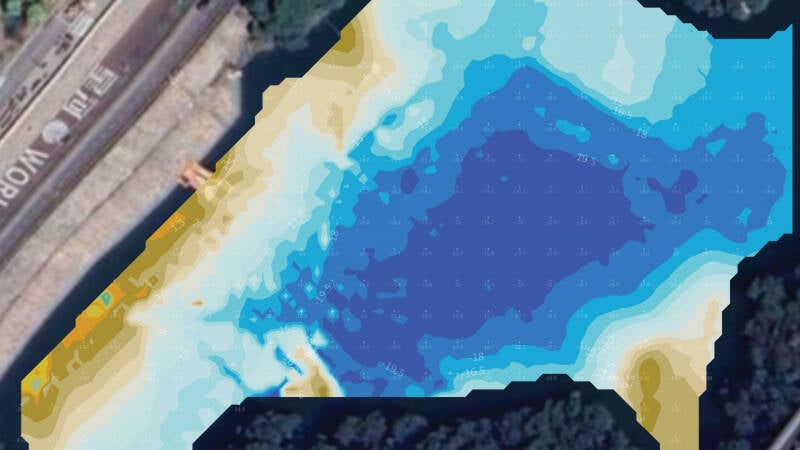

QY-BT | QYSEA Bathymetric Tool

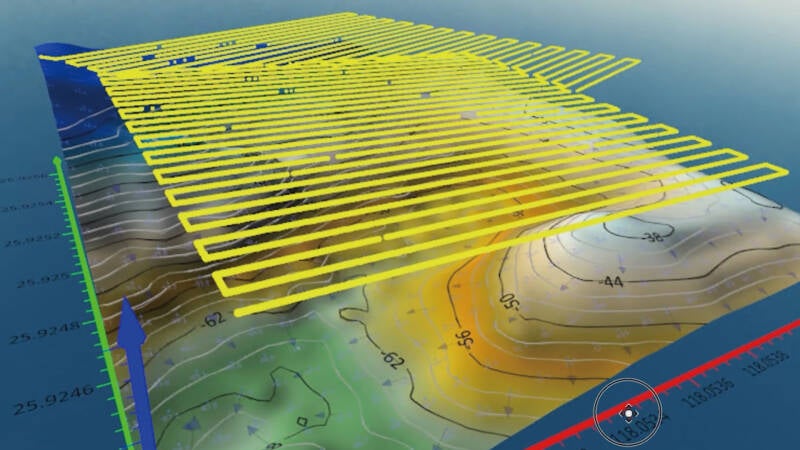

Intelligent 2D & 3D Seafloor Mapping

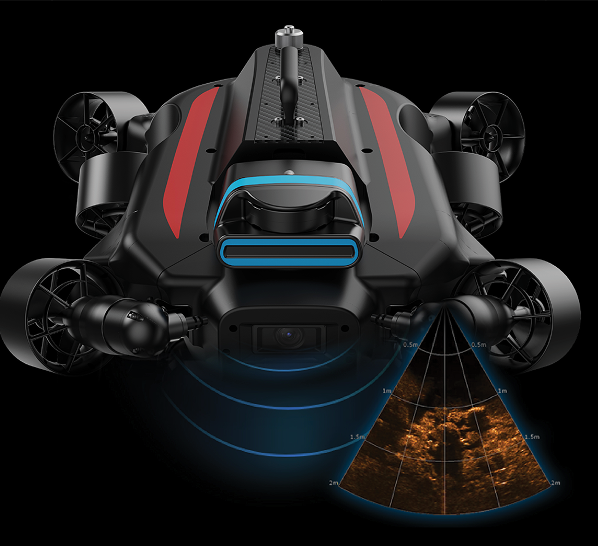

Identify Objects & Landscapes with 2D Sonar

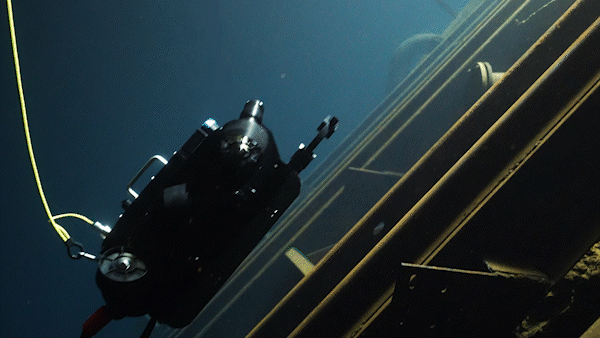

2D imaging sonar equipment can be integrated into the W6 NAVI, enabling operators to scan and inspect underwater environments in dark and turbid conditions. This technology provides detailed visual data of surrounding seabed areas, enhancing situational awareness and facilitating effective navigation and operations in rescue scenarios with great stability and efficiency.
Survey with Clarity

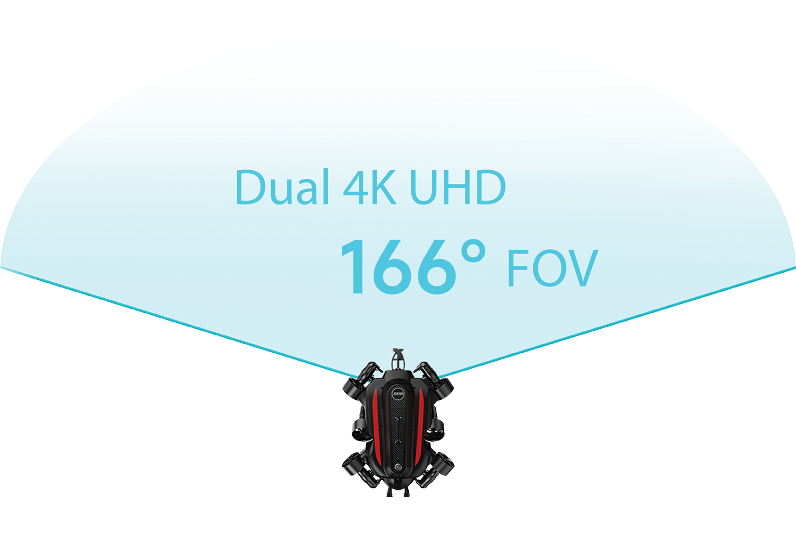

Dual 4K Camera System
FIFISH W6 NAVI's Dual 4K Camera System offers an ultra-wide field of view, enhancing inspection efficiency and providing operators with a complete underwater picture. Its comprehensive capabilities, coupled with FIFISH's patented software, facilitate extensive data collection, benefiting professional organizations and teams.
Dual 4K UHD Camera System
Pixels: 12 Megapixels
Lights: 12,000 Lumen LEDs
Lens: Ultra-Wide FOV Lens
Horizontal FOV: 166°
Vertical FOV: 100°
ISO: 6400 (Max)

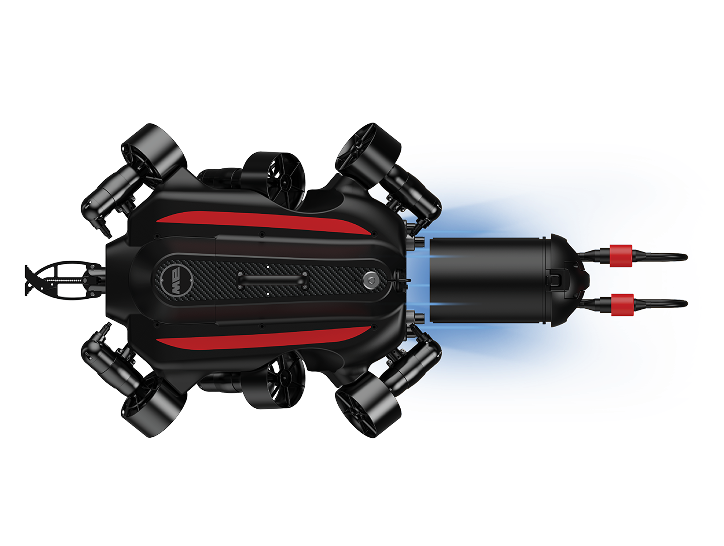

Efficient, & Swappable
Power System
FIFISH W6 NAVI is equipped with a 388.8Wh removable battery that can be replaced at any time, enabling extended underwater operations. The battery supports a quick charging mode, reaching 70% charge in just one hour.
*Optional direct power supply system available

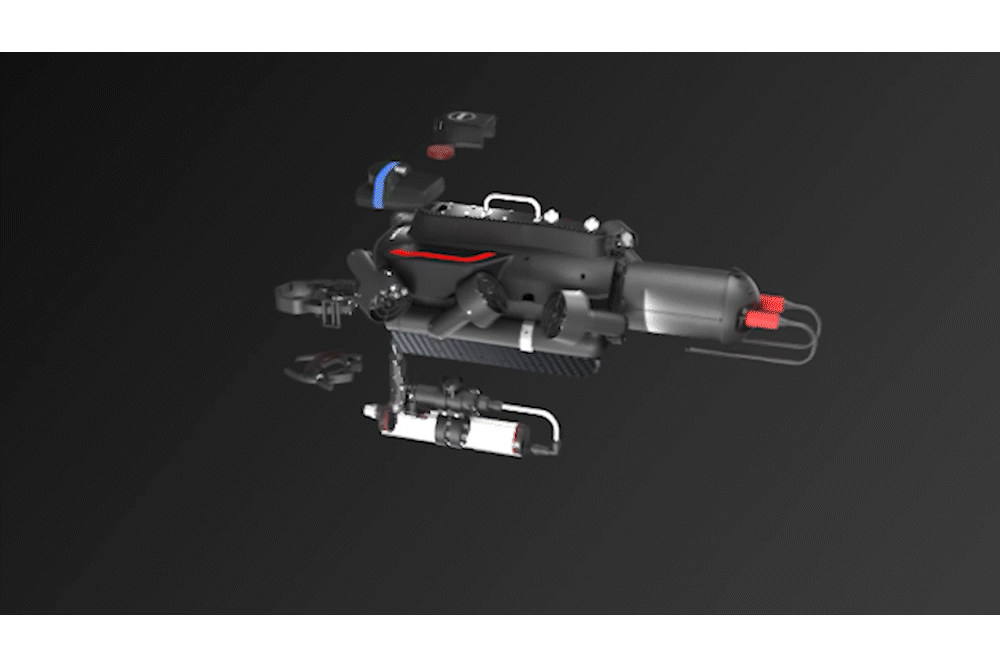

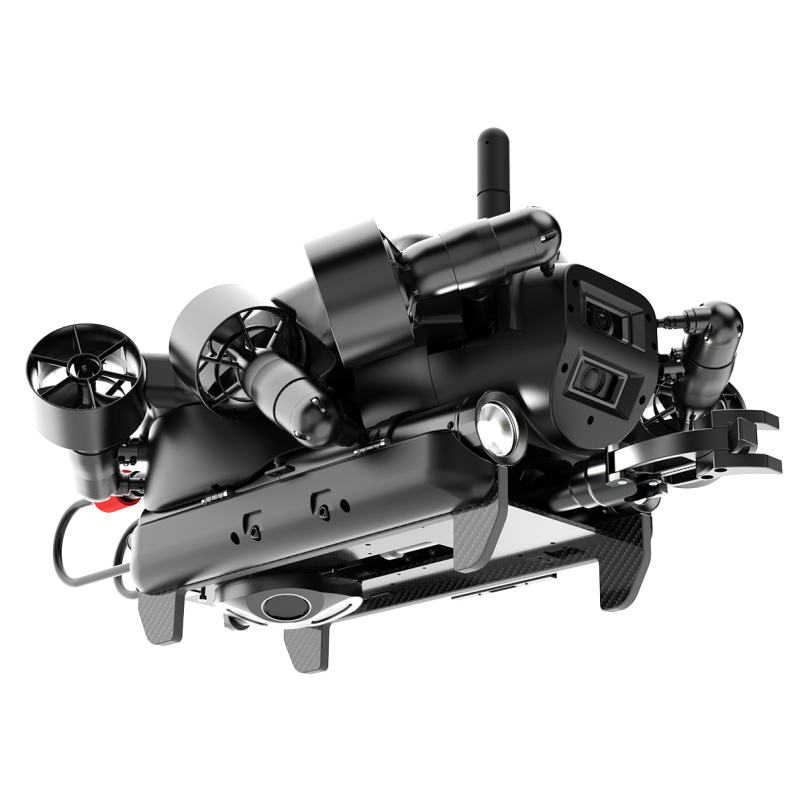

Modular Design, Multi-tool Integrations
FIFISH W6 NAVI is a versatile navigation system that can be seamlessly integrated with various tools,
enhancing its functionality for underwater operations.
