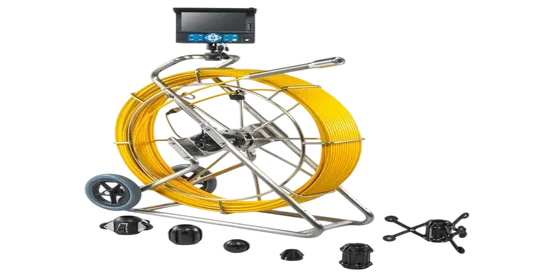

P40C Push Camera

  • 38mm self-levelling camera for always-upright, clear video.
  • 7” detachable LCD monitor with DVR recording.
  • 40m standard push cable, optional 50m or 60m.
  • Bright adjustable LED lights for dark pipe inspection.
  • IP68 waterproof rating, suitable for wet environments.
  • Flexible push rod for navigating bends easily.
  • Lightweight and portable, easy for one-person use.

  • USB output for quick video and image export.

Specifications:

Camera Head
Camera Size: Φ38mm×81mm（ main body）
Camera Total Length: 318mm
Sensor: 1/3" Sony CCD, 480 TV-Line
Pixel: 752H * 582V
View Angle: 120°
Self Levelling: Built-in
Focus Distance: 12cm (approx)
Depth-of-Field: 120cm(approx)
Front Lens: Sapphire glass
Water-Proof: 20m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12× LED(White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉

Cable Wheel
60-120M fiberglass push rod cable with on-screen distance counter
Diameter of push cable: 9mm

LCD Monitor
Screen: 7-inch 16:9 Super bright HD color LCD screen
Resolution: 800x480 RGB
Mirror and Flip: support image mirror, and flip
Video Resolution: 720*576 25fps Max.
Video Encoding: H.264
Photograph: 720*480/720*576
Audio Recording: local sound record
Output: TV and Audio output
External memory: support SD memory card up to 32GB
Data output: USB 2.0 to PC
LED Driver: Built-in dimmer
Play back: Video, Photo and Audio On-screen date and time
On-screen meter/ft. distance display
Battery Capacity: 7.4V 4400mAh Li-ion Battery
Power Supply: DC 12V input
Life/Charge time: 5/8 hours
Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese

Optional Features:
- Camera head with built-in 512Hz sonde

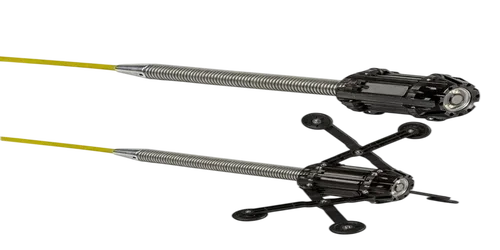

- Optional camera skids:
     Caster Skid: POM ￠ 134x83.9. 30mm Wheel
     POM Skid: POM ￠78x83.9
     Ball Support: POM S￠60x53.5
     Lock Sleeve: POM ￠54.6x38

- Keyboard for text input

- Optional Cable Length: 60M, 80M, 100M, 120M

Packing Details:
- 1 unit in one carton
- Carton G.W.: 23kg-28.8kg
- Carton Measurement: 80 x 36 x 92cm
