QY-MT
Smart Measurement Tool
Precision Measurement | Multiple Modes | Online & Offline Compatible | Data Visualization
High-Precision Non-Destructive Measurement
Comprehensive Reports in an Instant
Enhance Operational & Working Efficiency
Linear & Angular Measurement

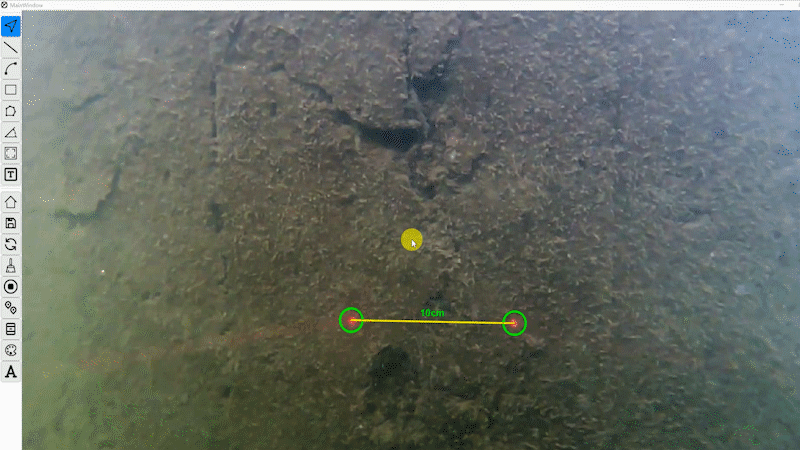

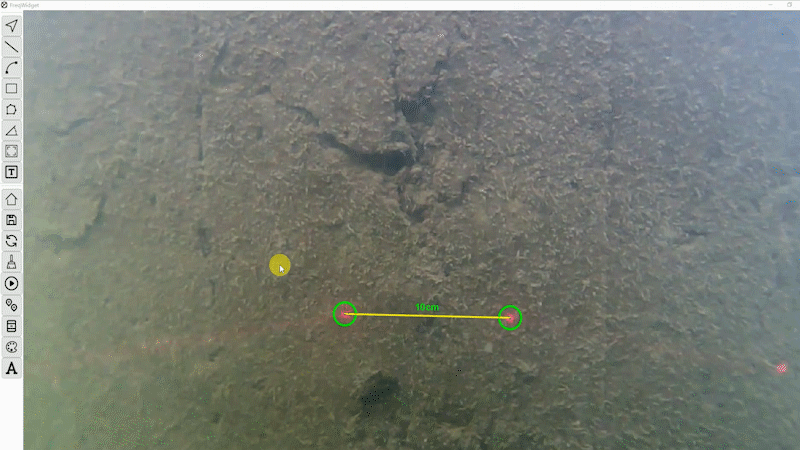

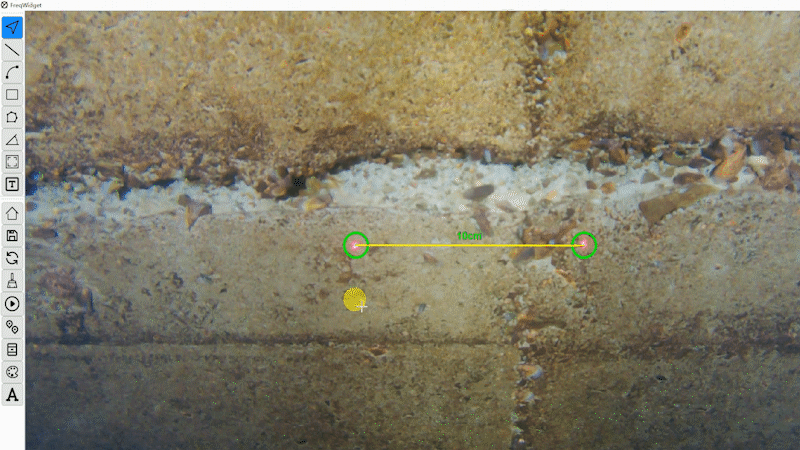

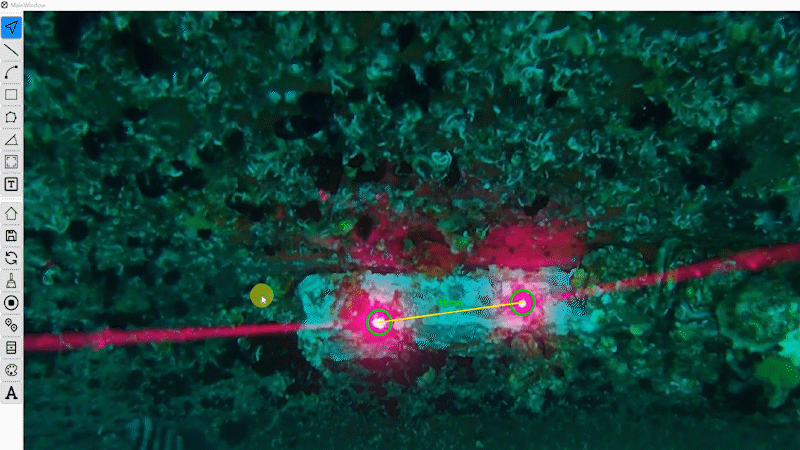

Length Measurement
Select a target object to instantly display its length, height, and other dimensions. Switch effortlessly between centimetres and feet for added convenience

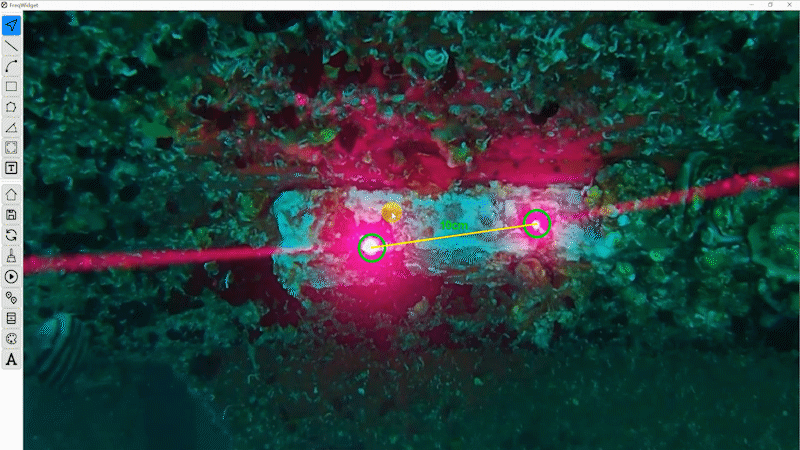

Curve & Arc Measurement
Measure curved objects in a plane with precision using QY-MT’s intelligent curve and arc drawing capabilities, ensuring efficient operations.

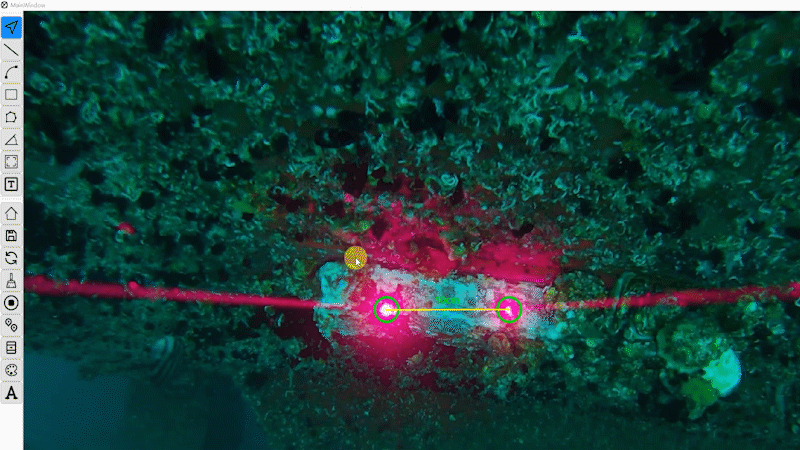

Angle Measurement
Simplify underwater angle measurement—select "Angle Measurement," choose the target, and get precise angle data with a single click.
Area & Perimeters Measurement
Rectangular Area & Perimeter Measurement
Analyse a target's outline to measure the area and perimeter of rectangular objects with minimal effort.
Polygonal Area & Perimeter Measurement
Measure polygonal underwater objects easily. Select "Polygon Area & Perimeter Measurement" and retrieve accurate data instantly.

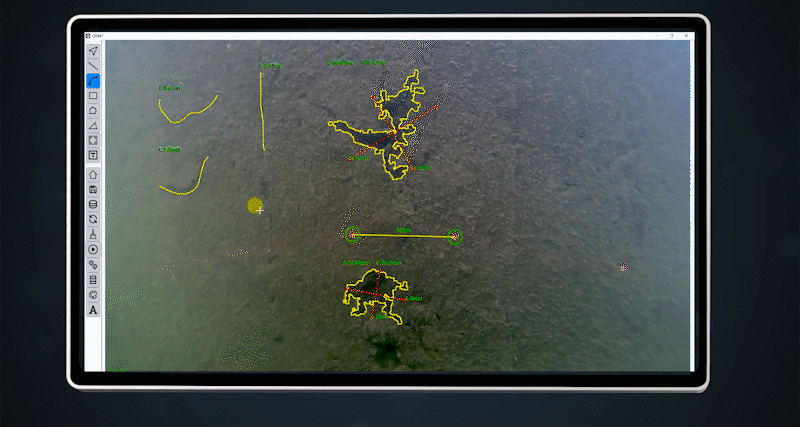

Adaptive Measurement Unique Shapes
For complex shapes, QY-MT’s AI-powered system captures the area and perimeter of irregular objects, delivering high-precision data in one click.
High Precision & Low Error

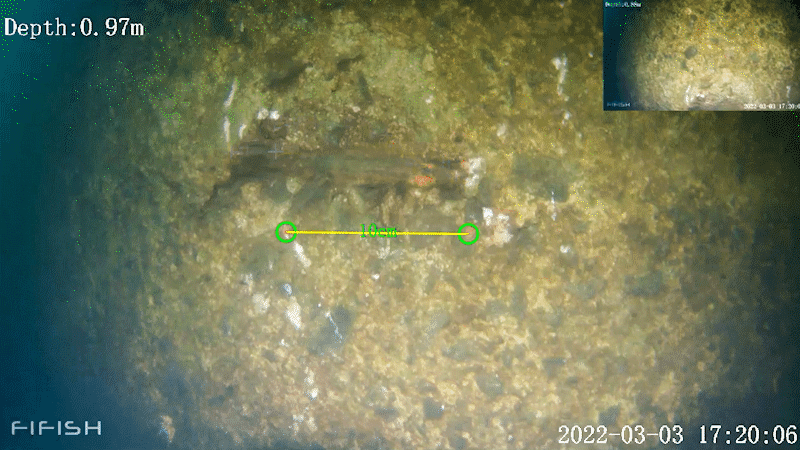

Actual Work Environment
Non-destructive measurement of polygonal cracks on a bridge:
Length: 14.20 cm
Height: 3.74 cm
Perimeter: 32.38 cm
Area: 40.26 cm²
The actual work environment provides high-precision measurement data.

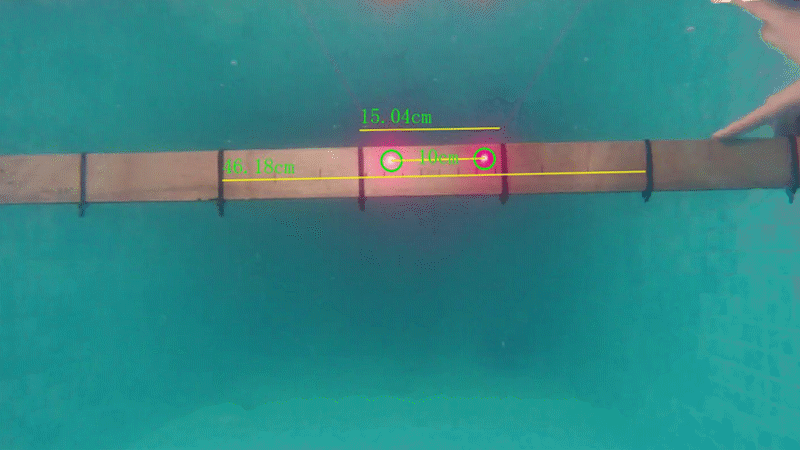

Control Environment
Target Object ①
Actual Distance: 15 cm
Measured Distance: 15.04 cm, Error: 0.3%
Target Object ②
Actual Distance: 46 cm
Measured Distance: 46.18 cm, Error: 0.4%
In a laboratory environment, accuracy reaches up to 99.7%.
Automated Measurement Reports
Using the quick export report feature, the system generates measurement reports
based on your mission data, enabling quick decision-making.
