Specifications:

Camera Head
Camera Size: Φ38mm×81mm（ main body）
Camera Total Length: 318mm
Sensor: 1/3" Sony CCD, 480 TV-Line
Pixel: 752H * 582V
View Angle: 120°
Transmitter: 512hz built-in(selectable)
Self levelling: Built-in
Focus Distance: 12cm (approx)
Depth-of-Field: 120cm(approx)
Front Lens: Sapphire glass
Water-Proof: 20m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12× LED(White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉

Cable Wheel
40-60M fiberglass push rod cable with on-screen distance counter
Diameter of push cable: 6.8mm

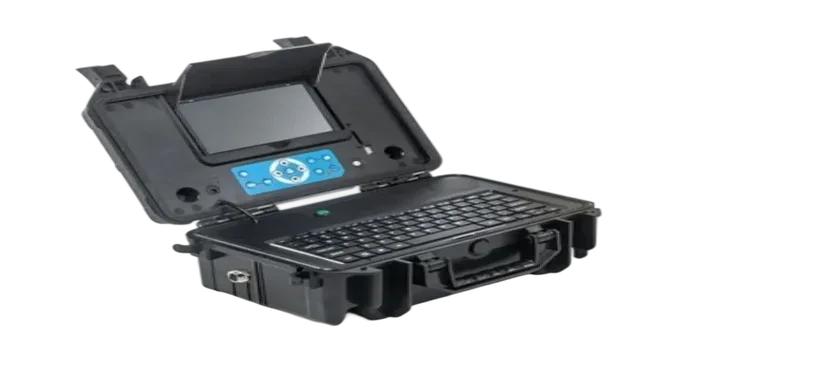

LCD Monitor

Screen: 7-inch 16:9 Super bright HD color LCD screen
Resolution: 800x480 RGB
Mirror and Flip: support image mirror, and flip
Video Resolution: 720*576 25fps Max.
Video Encoding: H.264
Photograph: 720*480/720*576
Audio Recording: local sound record
Output: TV and Audio output
External memory: support SD memory card up to 32GB
Data output: USB 2.0 to PC
LED Driver: Built-in dimmer
Play back: Video,Photo and Audio On-screen date and time
On-screen meter/ft. distance display
Battery Capacity: 7.4V 4400mAh Li-ion Battery
Power Supply: DC 12V input Life/Charge time: 5/8 hours
Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses

Optional feature:
- Camera head with built-in 512Hz sonde
- Optional camera skids:
Caster Skid: POM  ￠ 134x83.9. 30mm Wheel
POM Skid: POM  ￠78x83.9
Ball Support: POM S￠60x53.5
Lock Sleeve: POM  ￠54.6x38
- Keyboard for text input
- Optional cable length: 40M, 50M,60M

Packing details:
- 1 unit in one carton
- Carton G.W.: 13kg-16kg
- Carton Measurement: 60 x 60 x 40cm
